    District 6 Projects - Chester County

    Doe Run Road over Doe Run Bridge Replacement

    Project Overview

    County: Chester County
    Municipality: West Marlborough Township
    State Route: Route 82
    Local Name: Doe Run Road
    Project Type: Bridge Replacement
    Last Updated: January 2025

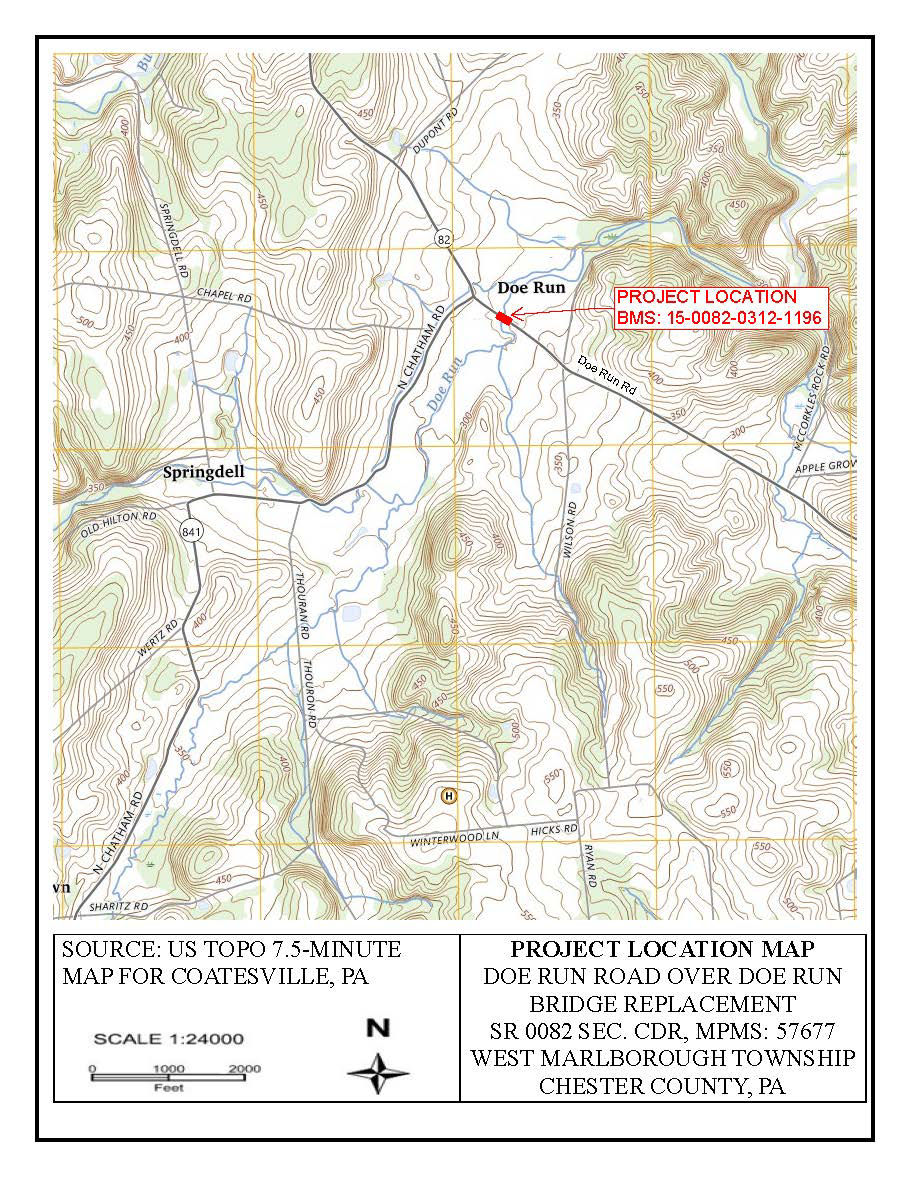

    This project will replace the existing bridge superstructure carrying Route 82 (Doe Run Road) over Doe Run. The project is located in West Marlborough Township, Chester County, about 0.12 miles south of Chatham Rd (Route 841); and 0.23 miles north of Wilson Rd.

    Route 82 carries 4881 vehicles per day (2024) with 9% truck traffic. The surrounding area is a combination of single-family homes, farmhouses, and farmland.

    The existing bridge is a single-span bridge that consists of non-composite rolled steel I-beams with 5-1/4” open steel grid deck superstructure and steel bridge railings. The existing bridge has a curb-to-curb width of 22’, a span length of 56.5’, and an out-to-out width of 23’ that was constructed in 1932. The guide rail is present at all four corners of the approaches.

    The proposed bridge superstructure will be steel I-beams or prestressed concrete beams. The open grid steel deck will be replaced with a slightly wider concrete deck with a curb-to-curb width of 22.79’ (out-to-out: 25.79’). The existing steel bridge railing will be replaced with a PA-3 Rail bridge barrier system with painted brown rails.  The stone masonry substructures will be modified and recapped to accommodate new bridge seats and concrete end diaphragms.  The soil behind the abutment faces will be excavated and replaced with lightweight concrete.  Roadway reconstruction and resurfacing will be limited to 100’ on both approaches. New signings and pavement markings will be installed.

    Route 82 (Doe Run Road) is already detoured, and the bridge is currently closed due to the critical condition. Driveway access will be maintained at all times.

    Contact Information

    Ariful Hoque
    Project Manager
    mdhoque@pa.gov
